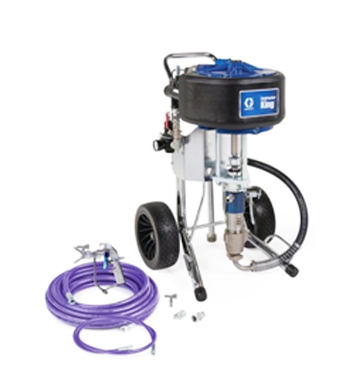

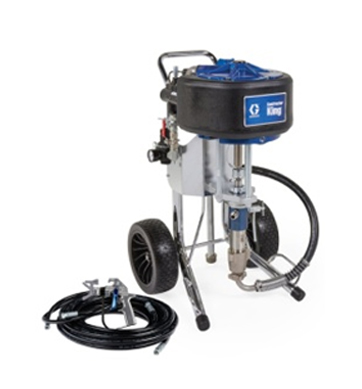

Introducing the newest member of the King family - the Contractor King! Designed around single-person mobility and high performance, this affordable line of air-powered sprayers is the perfect addition to every Contractor's fleet.

The Contractor King is available in many hose and gun configurations, these units feature a "just the essentials design" - allowing users to customize the sprayer by adding only the accessories that they need. Perfect for for high-volume and high-pressure waterproofing, fireproofing and protective coatings applications, these proven and durable sprayers offer the ultimate in convenience and value for every contractor

XL6500 Air Motor :

  • Field-proven design virtually eliminates icing to keep you spraying
  • Air-piloted for fast changeover and low pulsation
  • Durable aluminum, steel and composite construction for years of service

Endurance Lower :

  • Quick and easy pump removal and maintenance
  • Chromex Rod and Stainless Steel cylinder for maximum life and performance
  • Xtreme Seal UHMWPE & Leather packings for ultimate durability with most materials
  • Quick Access intake valve for easy access to lower ball check

Easy to Move and Transport :

  • Nearly 100 lbs lighter than comparable models for easy, one-person handling
  • Chrome-plated, welded-steel frame for years of service
  • Integrated lifting points for easy positioning on any jobsite
  • Flat proof tires resist jobsite debris for maximum convenience

High Pressure Silver Plus Gun :

  • Up to 7250 PSI
  • Up to 35% lighter than other guns in its class
  • Requires less trigger pull force for comfortable all-day spraying
  • Durable Steel and aluminum design features oversized fluid passages for less pressure loss
  • The convenience of a single gun that works with all units in your fleet

Proven Air Valve Design :

  • Up to 7250 PSI
  • Delivers superior finish with no pulsation, even with multiple guns
  • Simple design for easy serviceability
  • Oversized porting for maximum air flow

Technical Specifications :

  PART NUMBER

  PUMP RATIO

  PACKAGE OPTIONS

  GUN MODEL

  279005

  45:1 (4500 psi)

  Bare (No Hose/Gun)

  No Applicator

  279006

  45:1 (4500 psi)

  Complete

  Silver Plus Gun

  279007

  45:1 (4500 psi)

  Big 150

  Silver Plus Gun

  279010

  60:1 (6000 psi)

  Bare (No Hose/Gun)

  No Applicator

  279011

  60:1 (6000 psi)

  Complete

  Silver Plus HP Gun

  279012

  60:1 (6000 psi)

  Big 150

  Silver Plus HP Gun

  279013

  70:1 (7250 psi)

  Bare (No Hose/Gun)

  No Applicator

  279014

  70:1 (7250 psi)

  Complete

  Silver Plus HP Gun

  279022

  70:1 (7250 psi)

  Big 150

  Silver Plus HP Gun
