Sand Making Machines ( Vertical Shaft Impactor), Stone Crushers, VSI Crushers, Vibrating Machines, Screening Machines, Vibrating Feeders, Grizzly Feeders, , Belt Conveyors, Sand Blasting Machines, Loader Buckets, Perforated Sheets, Wire Reciprocating Feeders Mesh, Repair And Maintenance Of Plant And Machinery ( Stone Crusher, VSI, Feeders), Conveyor Systems, Belt Conveyors, All Spares And Wear Parts Of Sand Making Machines , Crusher Jaw / Cone, Rotor / Compactors, Earth Movers, Excavator Buckets , Tooth Point, High Speed Chucks, Carbide End Mill / Drills

Our Trade Products

Perforated Sheets and
   Wire Mesh

All Spare & Wear Parts of Sand    Making Machines
   (Vertical Shaft Impactor)

All Spare & Wear Part of Stone    Crusher
Sand Blasting Machines


Sand Blasting Machines


Sand Blasting Machines

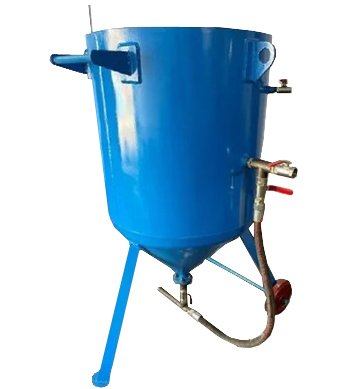

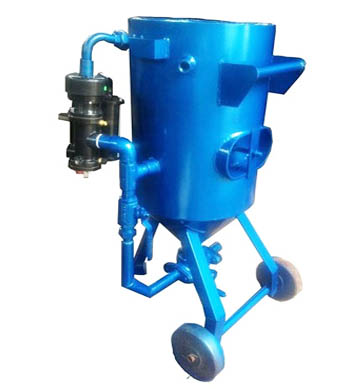

Sand blasting machines are used for various applications like cleaning of moulds, putting grains on the moulds, preparing surface for painting, ptfe coating etc.

YASHBLAST abrasive machines are manufactured to the international standard and are used on production site throughout the country.

The machine comes in ready condition to use, only a compressed air connection is to be provided. The medium used for blasting is collected in the machine and can be reused for many times. An exhaust blower provided at the top of the machine with filtering system to give clear exhaust air. All models are equipped with concave head for easy filling, with automatic pop up valve.

All vessels are tested at high pressure as per international standards. The conical bottoms ensure an easy flow of abrasive to the metering valve. The inspection trap is provided for access to the interior part of the vessels. All weldings are performed with the help of rotator & positioner and thoroughly checked and documented as per the procedure qualification.

All the vessels are fabricated in accordance with ASME Section VIII and with pollution control norms. Hydraulic as per the fabrication therefore guarantying the highest level of performance.



Model Description Capacity Dimension
(Diameter)
Height
(mm)
Pipe
Working
Weight
(Kg)
YBH-20
Manual Abrasive Blast m/c
20
270
800
1/2"
35
YBH-35
Manual Abrasive Blast m/c
35
325
800
1/2"
50
YBH-65
Manual Abrasive Blast m/c
65
375
1150
1 1/4"
75
YBH-100
Manual Abrasive Blast m/c
100
500
1150
1 1/4"
100
YBH-200
Manual Abrasive Blast m/c
200
600
1400
1 1/4"
170
YBH-250
Manual Abrasive Blast m/c
250
600
1650
1 1/4"
190
YBH-300
Manual Abrasive Blast m/c
300
750
1700
1 1/4"
220

Sand Blasting Machines
Sand Blasting Machines






Pulley Roller



Tranzom Single Roller


Tranzom Double Rollers


Tranzom Three Rollers



FEATURES :

• Universal type inclined screen with Circular motion for wet and dry    screening.
• 1-2-3 deck provided with 20 degree Inclination.
• Bolted frame/ fabricated construction
• Vibrator position ensures uniform vibration All through the screen mesh.
• Self aligning screen, duty roller, bearings Are grease lubrication.
• Simple adjustment of vibration Amplitude by counter – weights.
• Drive is through motor, V-belts and Driven pulley fitted on either
    side of the main shaft.
